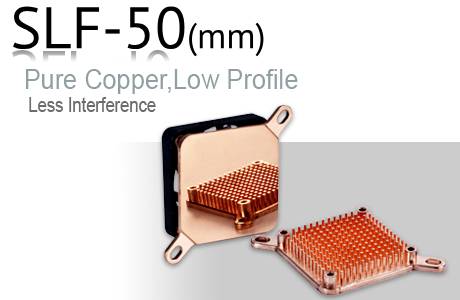

Low Profile - Total height is 17mm which reduces the likelihood of interference with other components and provides the best
efficiency within a limited space.
- Multiple push pin locations for universal mounting on various board assembly. (hole to hole distance:
73mm to 79mm).
- Formed of pure copper to enhance thermal conductivity.
- Excellent surface flatness minimizes the interface between heat source and heat sink.
|
Dimension
|
50x50x17(H) mm |
|
Weight
|
80g |
|
Material
|
Forged copper 1100 |
|
Base Flatness
|
Polished mirror surface, flatness for machined surfaces are typically in the range of 0.0003" to 0.0004"per inch |
|
Fan spec
|
| Manufacture |
Sunon |
|
| Size |
50 x 50 x 10 mm |
|
| Part # |
ME50100V1-000U-G99 |
|
| Volts |
12v DC |
|
| Current |
0.260 amp |
|
| Power |
1.30W |
|
| PRM |
5200 |
|
| CFM |
4.7 |
|
| Noise |
30 dB(A) |
|
|
