- Super high density, radial pattern, micro-pin design (0.5mm from pin to pin), provides maximum surface
exposure area for superior cooling performance.
- Direct injection water flow design, delivers coolant straight to CPU core. Eight return holes pulls
heated water away for extremely fast heat dissipation.
- Metallic Mirror coating gives elegant style and superb finish.
- Water block's base is machined to .0003 per inch run-out which optimizes surface contact and maximizes
thermal conductivity performance.
- Compatible with all 1/2", 3/8" and 1/4" coolant tubing.
- 100% leak tested and inspected direct from factory.
|
Heat Source Dimensions
|
31 x 31mm |
|
Power Dissipation
|
130w |
|

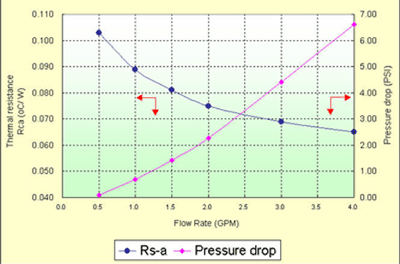

Flow (GPM)
|
Rs-a (°C/W)
|
Pressure Drop (PSI)
|
|
0.5
|
0.103
|
0.1000
|
|
1.0
|
0.089
|
0.7000
|
|
1.5
|
0.081
|
1.4300
|
|
2.0
|
0.075
|
2.2700
|
|
3.0
|
0.069
|
4.4000
|
|
4.0
|
0.065
|
6.6000
|

|
Dimension
|
58(L) x 58(W) x 23.3(H )mm |
|
Base
|
50(L) x 50(W) x 9(H) )mm |
|
Total Weight
|
167g (Water Block Only) |
|
|
 |
|
