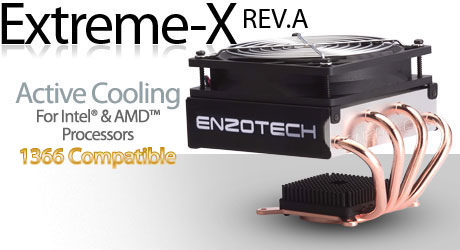

- Compatible with all single , dual-core and quad-core CPUs for Intel® LGA 1366 , Socket 775
and AMD™ Sockets 940 / AM2 / AM2+ / AM3

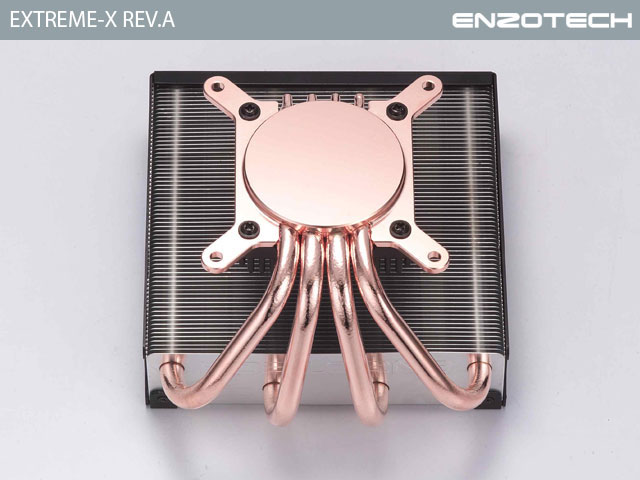

- The base of the Heat Sink is machined to 0.0003 per inch run-out, which optimizes surface contact and
maximizes thermal conductivity performance.

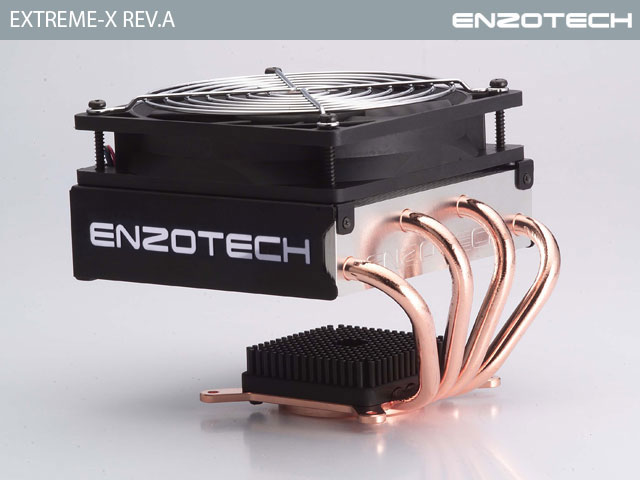

- Four 8 mm heat pipes guarantee the CPU will always run smooth and at optimum efficiency.

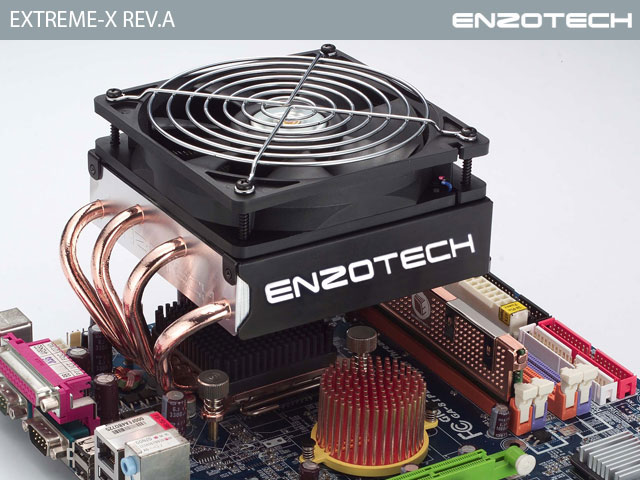

- The large 120 mm fan provides extreme volume of airflow which will keep your Northbridge chipset cool
at the same time.
- Artic Silver®5 Thermal Grease .
- Fan speed control included.
- Please remove the black sponge before the installation
- Extreme-X REV.A currently does not support Asus M2N32 SLI Motherboard
- Optional accessories for 754/939/k8, please purchase Type-X K8 module if needed.
|
Dimension (L x W x H)
|
148x148x118mm |
|
Total Weight
|
835g |
| Fan |
|
Delta Fan
|
AD1212UB-A73GL |
|
Dimension (L x W x H)
|
120x120x25mm |
|
Speed
|
1000 ~ 2500 RPM |
|
Noise
|
15.8 ~ 43.3 dB-A |
|
Air Flow
|
38.9 ~ 98.6 CFM |
|
Voltage
|
12VDC . 0.5A |
|
Connector
|
Molex 2695- 3 Wire |
|
Bearing Type
|
2-Ball |
|
Approval
|
UL ,CUL , TUE and CE |
| Heatsink |
|
Base
|
Forge C1100 Copper Base , Mirror Polished |
|
Material
|
Aluminum Fins |
|
Heatpipes
|
4 Piece of 8∅ Pipes |
|
Thermal Grease
|
Arctic Silver® 5 |
|
