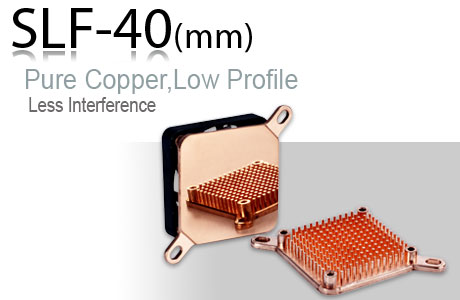

Low Profile - Total height is 13.8mm which reduces the likelihood of interference with other components and provides the best efficiency within a limited space.

  • Multiple push pin locations for universal mounting on various board assembly. (hole to hole distance: 59mm to 63mm).
  • Formed of pure copper to enhance thermal conductivity.
  • Excellent surface flatness minimizes the interface between heat source and heat sink.

40x40x13.8(H) mm
Forged copper 1100
Base Flatness
Polished mirror surface, flatness for machined surfaces are typically in the range of 0.0003" to 0.0004"per inch
Fan spec
Model AD0412HX-K93
Size (mm) 40 x 40 x 6
Vendor ADDA
Voltage (VDC) 12.0
Input Current (AMP) 0.08
Speed (RPM) 6300
Max. AIR Flow 5.400 CFM
Max. Air Pressure 2.032 mm H2O
Nose (dBA) 30.5
Wire Length (mm) 300 ?10
Housing Molex 2695-3 pin (or equivalent)
Pin Assignment Black = negative
Red = positive
White = FG
