1:1 scale product drawing

There are many different types of motherboards on the market, many of which do not provide detailed specifications. In cases where our listed specifications do not satisfy your questions regarding compatibility, please follow the steps below. If you are currently an Enzotech product user and recognize other types of motherboards compatible with our product, please let us know. Your help will be greatly appreciated. ? ? ? Enzotech?
Purpose: To measure compatibility Tool: ruler,cutter kinfe
Enzotech 1:1 scale product drawing.

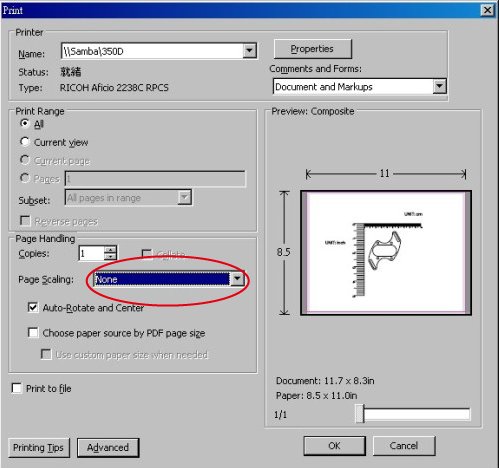

Step1: Open the product PDF file that you would like to measure and print the drawing out at 1:1 scale. (Make sure the Page Scaling is set to None )

Step2 Measure the product drawing with a ruler to ensure the drawing is at 1:1 scale.

Setp3 Use scissors to cut out the product drawing and place on the chipset or motherboard you would like to measure


Setp4 Place?the cut out?drawing on chipset or motherboard?where?you would like to??install the product.
